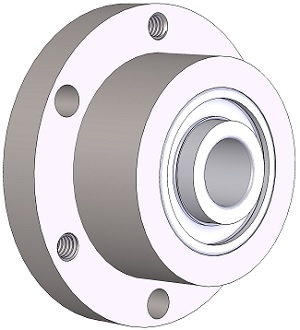

Ball Bearing Universal Q.D. Idler Bushings

For use with any rim that accommodates a Q.D. Bushing. Furnished with ball bearings and fasteners.

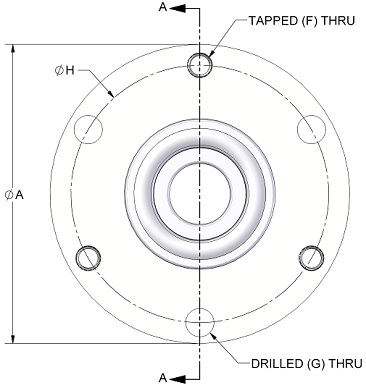

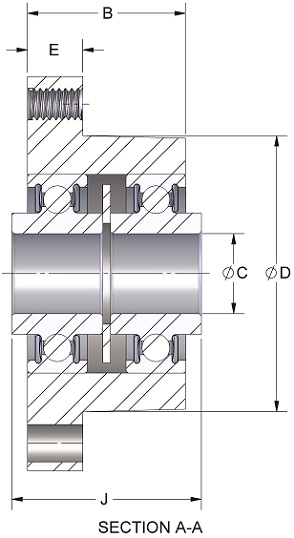

Part No.

A

B

C

D

E

F

G

Bolt Circle H

J

App. Wt.

Downloads

SH-B

2-5/8"

1-5/16"

.635/.640

1-7/8"

7/16"

1/4-20

19/64"

2-1/4"

1-9/16"

1.2

dwg

dxf

step

igs

SDS-B

3-1/8"

1-1/4"

.635/.640

2-3/16"

7/16"

1/4-20

19/64"

2-11/16"

1-1/2"

1.5

dwg

dxf

step

igs

SD-B

3-1/8"

1-13/16"

.635/.640

2-3/16"

7/16"

1/4-20

19/64"

2-11/16"

2-1/16"

1.7

dwg

dxf

step

igs

SK-B

3-3/4"

1-15/16"

0.750

2-13/16"

9/16"

5/16-18

23/64"

3-5/16"

1-15/16"

3.0

dwg

dxf

step

igs

SF-B

4-5/8"

2-1/16"

1.000

3-1/8"

9/16"

5/16-18

23/64"

3-7/8"

2-1/16"

3.2

dwg

dxf

step

igs

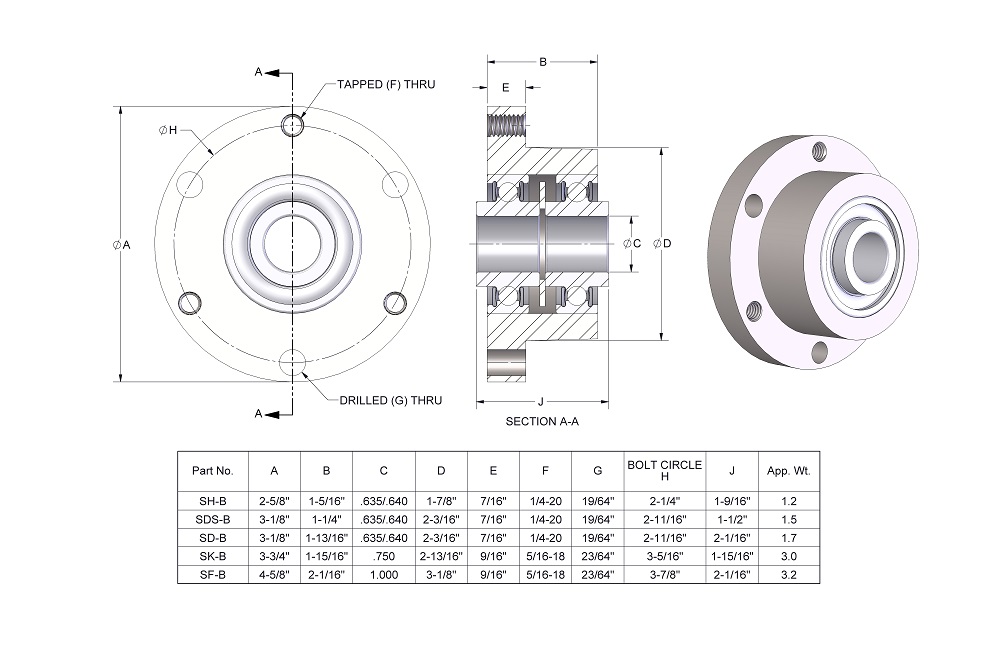

Rendering & Data Table Image

---

Typical Installation of a Q.D. Idler Bushing

Bolt and nut not included.
